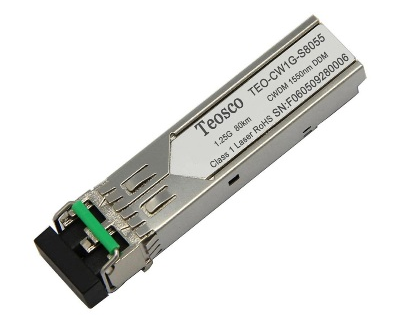

DWDM SFP TEOSCO - TEO-DW1G-S120xx

  • Sale
  • 350,00 €
  • regular price


PRESENTATION

Teosco DWDM (Dense Wavelength Division Multiplexing) SFP (small form-factor pluggable) modules ensure the high speed and physical compactness required by today's networks, while providing flexibility in the integration and control of inventory needed by network administrators. The Teosco DWDM SFP muduli are available in all wavelengths 100 GHz or in 50 GHz C belt wavelengths on the DWDM ITU network. They are designed for MSA (Multi-Source Agreement) standards that ensure wide compatibility of network equipment. Because the interfaces support multiple data rates (multirate interface), both 1,25 Gbps and 2,67 Gbps protocols are supported. For 8G / 10G data rates, please refer to SFP + products. They are compatible with serial optical data communications, such as Fiber Channel, SDH / SONET and Ethernet applications. The modules are "hot pluggable" and digital diagnostic functions are available through the I2C serial bus, which is specified in SFP MSA SFF-8472 industry standard. The modules meet the requirements of the IEEE802.3 Gigabit Ethernet standard and the ANSI Fiber Channel specifications and are suitable for interconnection in Gigabit Ethernet applications.


TECHNICAL DETAILS:

  • Package: DWDM SFP
  • Data speed: 1,25 Gbps
  • Wave lenght: Nm 1563,86 - 1528,77 nm
  • Component: DFB / APD
  • Distance: 120 km
  • Connector: LC
  • Warranty: 5 let
  • Product code: TEO-DW1G-S120xx
  • xx = DWDM ITU channels from 1563,86 nm to 1528,77 nm
  • Price depends on packing: 1 piece, 10 pieces
  • Availability: In Stock
